GFK30 One Way Clutch Bearing Double Row Freewheel Radial Ball Bearing

  • 1
  • 2

Brand Name : MOUETTE

Model Number : GFK20, GFK25, GFK30, GFK35, GFK40, GFK45, GFK50 - One Way Clutch Bearing

Certification : ISO/TS 16949:2009, ISO 9001:2008

Place of Origin : China

MOQ : 100

Price : USD6 per Piece

Payment Terms : L/C, T/T, D/A, Western Union, Paypal

Supply Ability : 500,000 Pieces per Month.

Delivery Time : 3-45 working days.(Huge Quantity Stocks Available))

Packaging Details : Plastic bags, Cartons and European Standard Plywood Case.

Name : Freewheels One Way Ball Clutch

Material : High-Alloy Bearing Quality Steel

Rolling Body : Roller Bearings

The Number of Rows : Double row

Load Direction : Radial Bearing

Spherical : Non-Aligning Bearings

Separated : Unseparated

One Way Clutch : One Way Clutch Bearing

Contact Now

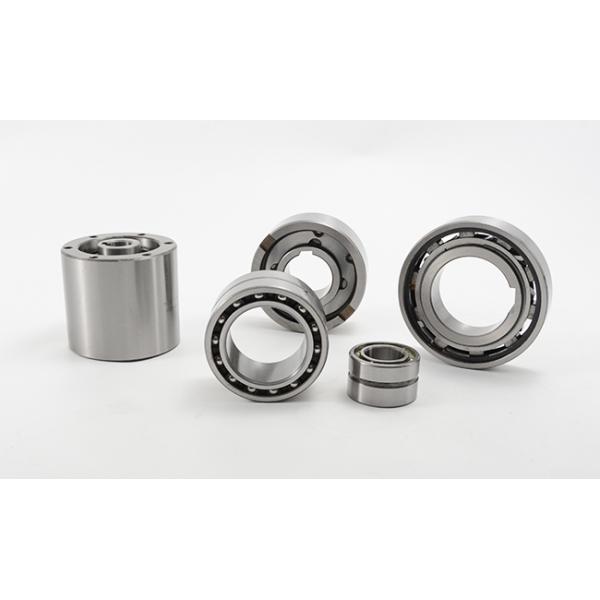

Freewheels One Way Ball Clutch Bearings Sprag Type Clutch GFK30

Model GFK is a sprag type clutch integrated into a 59 Series ball bearing.

This design provides high torque capacity for minimal outside diameter.

It is a bearing supported type, shipped grease lubricated.

Oil bath lubrication is also possible if the original grease is first removed by flushing the clutch with a suitable solvent.

Whatever the lubrication type, seals should be provided.

Torque transmission must be ensured by a press fit assembly into a rigid outer housing with R6 tolerance, and onto a shaft with p5 tolerance.

The total press fit on the GFK should not exceed the internal clearance for the model as listed in the Internal Clearance Column.

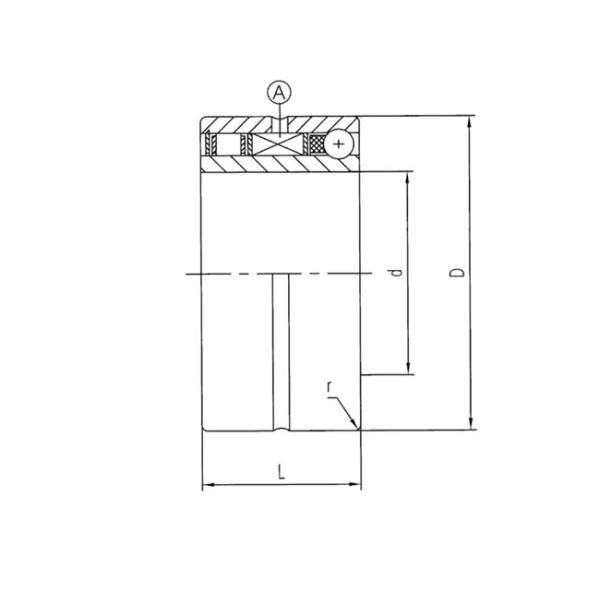

Freewheels One Way Ball Clutch Bearings Sprag Type Clutch GFK Series Specifications:

Type Size Overrunningspeeds Used Bearing series Basic Load Rating Dimensions Weight
Rollers Balls Rollers Balls
dyn. dyn. stat. stat.
d TKN1) nmax2) nmax3) C C C0 C0 D L r
mm Nm min-1 min-1 　 N N N N mm mm mm kg
GFK20 20 51 5500 4000 5904 5600 4400 2900 2750 37 23 0.5 0.09
GFK25 25 65 5300 3800 5905 6300 5300 3450 3350 42 23 0.5 0.11
GFK30 30 95 5000 3500 5906 7700 5500 4600 3650 47 23 0.5 0.13
GFK35 35 204 4600 3200 5907 8200 8500 5200 5700 55 27 1 0.2
GFK40 40 315 4200 3000 5908 8650 9300 5750 6700 62 30 1 0.3
GFK45 45 370 3800 2500 5909 9200 9700 6350 7300 68 30 1 0.34
GFK50 50 460 3400 2200 5910 9650 10000 6950 7800 72 30 1 0.36

NOTES:

1) Cmax=2.5 x TKN

2) Inner race overruns

3) Inner race overruns

GFK30 One Way Clutch Bearing Double Row Freewheel Radial Ball Bearing

Mounting example

GFK30 One Way Clutch Bearing Double Row Freewheel Radial Ball Bearing

GFK30 One Way Clutch Bearing Double Row Freewheel Radial Ball Bearing

GFK30 One Way Clutch Bearing Double Row Freewheel Radial Ball Bearing

GFK30 One Way Clutch Bearing Double Row Freewheel Radial Ball Bearing

GFK30 One Way Clutch Bearing Double Row Freewheel Radial Ball Bearing

GFK30 One Way Clutch Bearing Double Row Freewheel Radial Ball Bearing
